High Precision Holes CNC Turn-Mill Zinc Plated Parts
Your Leading Square High Precision Holes CNC Turn-Mill Zinc Plated Parts Supplier
S PIERSON MACHINERY SDN.BHD. is a professional manufacturer specializing in the CNC machining of high-precision small parts. We supply precision components made from metal and engineering plastics, widely used in motors, medical equipment, food machinery, textile machinery, and light industrial applications, serving long-term customers in Europe, America, and Southeast Asia.
-

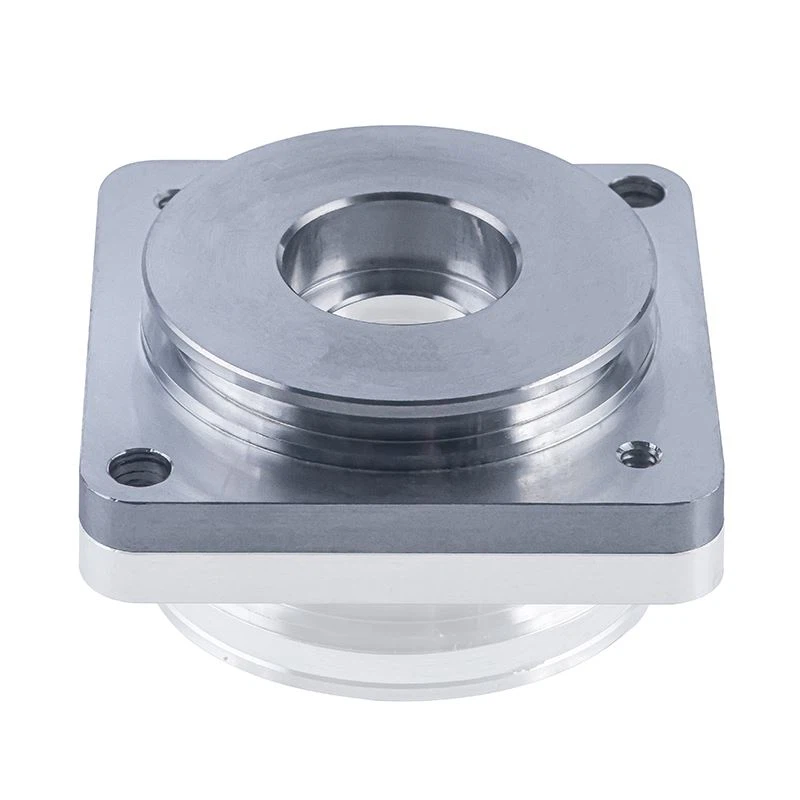

![High Precision Holes CNC Turn-Mill Zinc Plated Parts]()
High Precision Holes CNC Turn-Mill Zinc Plated PartsDiscover our high precision holes CNC turn-mill zinc plated parts, designed to meet the rigorous standards of modern manufacturing.read more
Why Choose Us?
Wide Range of Machinable Materials
Our capabilities include stainless steel, alloy steel, aluminum alloy, copper, and engineering plastics, allowing buyers to source multiple materials from one supplier.
Advanced Manufacturing Equipment
We operate over 40 sets of processing equipment, including four-axis machining centers, centering machines, and turning-milling composite machines to meet diverse order requirements.
Reliable Quality and Delivery
Our product qualification rate and on-time delivery rate reach 98%, helping buyers reduce supply risk and maintain stable production schedules.
International Market Coverage
Our business network in Southeast Asia, Europe, and the Americas enables us to efficiently serve customers across multiple regions.
Specifications of High Precision Holes CNC Turn-Mill Zinc Plated Parts
|
Product Name |
High Precision Holes CNC Turn-Mill Zinc Plated Parts |
|
Material |
Carbon Steel / Alloy Steel / Stainless Steel |
|
Process |
CNC Turning + CNC Milling |
|
Hole Size Range |
Ø0.5 mm – Ø25 mm |
|
Hole Tolerance |
±0.01 mm |
|
Hole Straightness |
≤ 0.02 mm |
|
Surface Roughness |
Ra 0.4 – 1.6 μm |
|
Part Size (L×W×H) |
5 mm – 200 mm |
|
Wall Thickness |
≥ 0.5 mm |
|
Plating |
Zinc Plating (RoHS Compliant) |
|
Zinc Thickness |
5–15 µm (typical) |
|
Corrosion Resistance |
Salt Spray ≥ 48 hrs (typical) |
|
Thread Options |
Metric / UNC / UNF (Optional) |
|
Concentricity |
≤ 0.02 mm |
|
Flatness |
≤ 0.02 mm |
|
Inspection |
100% Dimensional + Visual Check |
|
Drawing Standard |
ISO / ANSI / Customer Drawing |
Customization Options
| Materials | Carbon steel, alloy steel, stainless steel |
| Threaded holes | Metric, UNC, and UNF internal threads, etc. |
| Size | Customizable |
| Packaging | Customizable |
| MOQ | Customizable |
Common Materials for High Precision Holes CNC Turn-Mill Zinc Plated Parts
Carbon steel
Carbon steel is an alloy of iron and carbon, with a carbon content ranging from 0.02% to 2.14%. In addition to iron and carbon, it typically contains silicon, manganese, phosphorus, sulfur, and copper. Generally, higher carbon content increases hardness but can also make the steel more brittle.
Alloy steel
An alloy steel is a type of steel combined with more than one element (alloying elements). Alloying elements increase strength, hardness, wear resistance, and toughness, producing more robust and substantive steel. The alloying elements added to the base iron and carbon structure typically total no more than 5% of the alloy steel's material composition.
Stainless steel
Stainless steel is a type of iron-based alloy containing at least 10.5% chromium, which forms a protective layer on its surface, preventing rust and corrosion. Other elements, such as nickel, molybdenum, carbon, and nitrogen, enhance its performance, making it suitable for a variety of environments.
Ordering Process
Define Requirements
Provide detailed specifications including part drawings, materials, tolerances, quantity, and delivery schedule.
Quotation & Proposal
Receive a clear, competitive quotation based on your requirements and optional suggestions for optimization.
Sign Contract
Confirm order terms, lead time, and quality standards through a formal contract to ensure both parties' commitments.
Sample Approval (Optional)
Evaluate prototype or sample parts to verify dimensions, materials, and surface finish before full production.
Production
CNC machining is carried out with strict quality control at every stage to ensure precision and consistency.
Quality Inspection
Final inspection of all parts using advanced measurement tools to ensure compliance with specifications.
Packaging & Logistics
Parts are securely packaged for shipment, and delivery schedules are coordinated according to agreed terms.
Delivery & After-Sales Support
Goods are delivered on time, and technical or service support is provided as needed to ensure smooth use.
Application Industries of High Precision Holes CNC Turn-Mill Zinc Plated Parts
Applications Requiring Precise Repeatability: Once the design has been set through the CNC program, maximum quantities can be produced with a high degree of accuracy. This would apply to decorative pieces, car parts, and industrial equipment.
Construction: Precision CNC machining can replace the tedious hand-shaping applications in providing construction components for plumbers, pipefitters, and HVAC technicians.
Medical: Precision CNC machined parts are used in many elements of the medical industry to facilitate patient healing and comfort. Examples of medical applications include orthotic devices, implants, MRI machines, and research equipment.
Transportation: CNC precision machining can help in developing prototype parts for transportation applications, as well as creating final components for many components of automobiles, tractors, trucks, and ships.
Aerospace: With its critical safety requirements, aerospace benefits greatly from the use of precision CNC machining. Components used in everything on airplanes include landing gear, manifolds, bushings, valves, and pump parts.
Robotics: CNC machined parts are ideal for standing up to the rigorous and continuous use of robotics applications. Applications include robotic arms, custom jigs, and storage units.
Energy: Contributing to more efficient power generation systems, CNC machining is utilized in producing high-tech components for solar, wind, and hydropower generators and turbines.
Packing of Carbon Steel Motor Shaft with Thread and Step
Packaging details:
Customized wooden case can protect products from bumps during transportation.
Shipping & Payment
|
Shipping |
By logistics; by automobile; by train; by shipping; by air. |
|
Payment |
L/C; T/T; Paypal; West Union; MoneyGram etc; |
FAQ
We're well-known as one of the leading high precision holes CNC turn-mill zinc plated parts manufacturers and suppliers. If you're going to wholesale cheap high precision holes CNC turn-mill zinc plated parts made in Malaysia, welcome to get free sample from our factory.
